Feishu authentication

Feishu identity provider verifies CloudDM sign-in before users access DataSources

Organizations that use Feishu can let users sign in to CloudDM with their organization-managed accounts. CloudDM manages Feishu as a separate SSO provider.

The provider screenshots in this guide show its Chinese interface.

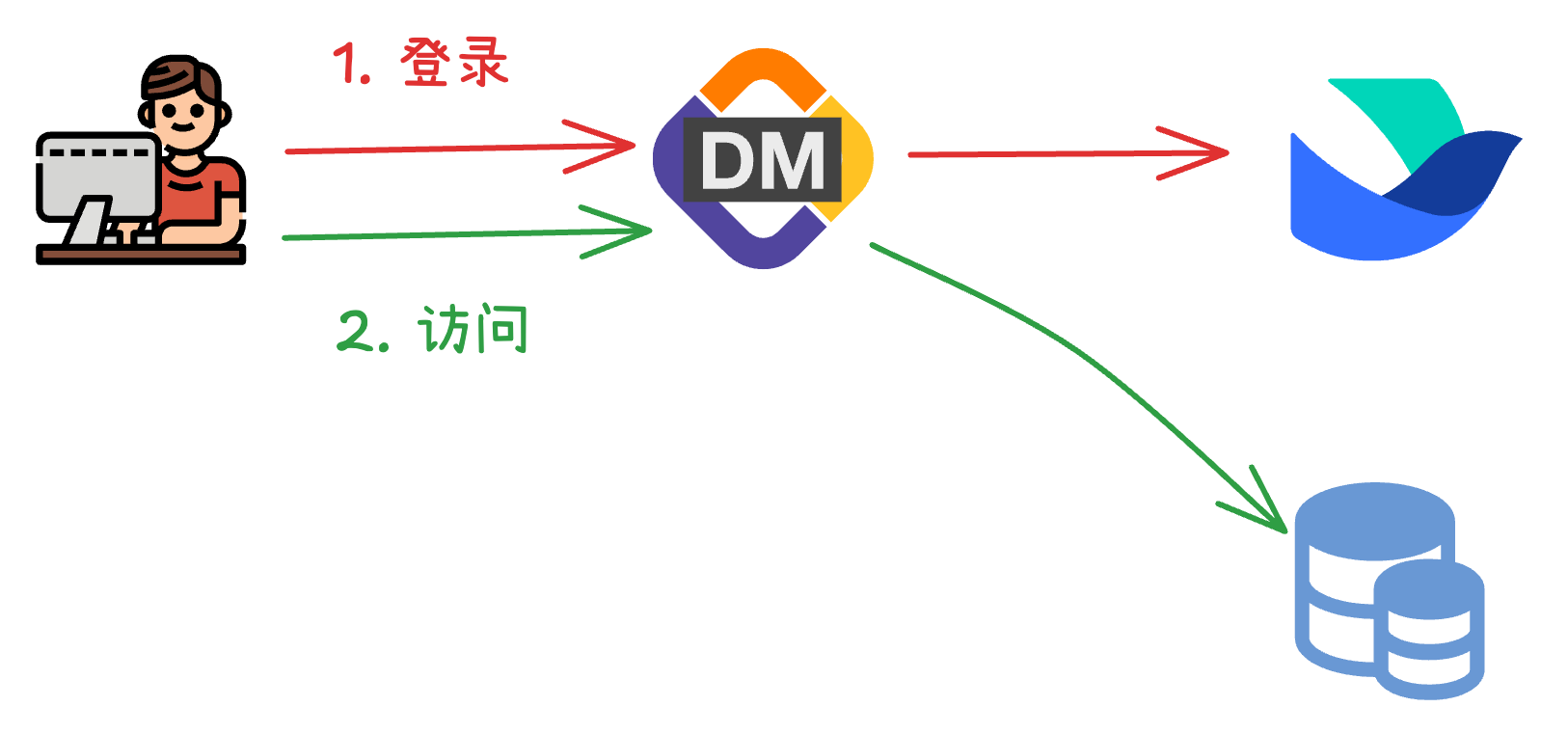

How it works​

  • The integration uses OAuth 2.0.
  • When users choose Feishu on the CloudDM sign-in page, their browser opens the Feishu sign-in page.
  • After sign-in, Feishu redirects the browser back to CloudDM with an authorization code.
  • CloudDM exchanges the code for user information and completes sign-in.

Configure the provider​

  1. Sign in to CloudDM with permission to manage integrations.
  2. Open Integrations > SSO and click Add.
  3. Select Feishu.
  4. Enter App ID, App Secret, and API Timeout (seconds), then choose a Default Role.
  5. Click Add.

Verify sign-in​

Sign out and select Feishu on the CloudDM sign-in page. Verify that authorization returns you to CloudDM and that a first-time user receives the configured default role.

Feishu app setup​

info

You can use the same app for sign-in and Feishu approvals, or configure them separately. Refer to the provider's official documentation for current field names and screens.

Before you begin

  1. Sign in to the Feishu Open Platform and select your organization.
  2. If you already have an app, add your account under Custom App > Member Management. Otherwise, create one below.

Create the app

  1. Open App Development > Feishu Apps > Create App. Create a Feishu app (Chinese interface)
  2. Enter the app details and click Save. App icons are available under Resource downloads. Enter Feishu app details (Chinese interface)

Configure the app

  1. In Credentials and Basic Information, copy App ID and App Secret. Find the Feishu app credentials (Chinese interface)
  2. To read email addresses and mobile numbers at first sign-in, open Permission Management > Add Permissions > App Permissions and enable contact:user.email:readonly and contact:user.phone:readonly. Without these permissions, users can enter their details when they first sign in. Manage Feishu app permissions (Chinese interface)
  3. In Security Settings, add the CloudDM server's public outbound IP address to the allowlist and set the redirect URL to the CloudDM callback, such as http://192.168.0.100:8222/callback/auth. Configure Feishu security settings (Chinese interface)
  4. In Version Management and Release, publish the app and set who can use it. Publish the Feishu app (Chinese interface)
