Active Directory authentication

CloudDM verifies domain sign-in with Active Directory and handles DataSource access after authentication.

Configure your organization's Active Directory domain as a dedicated provider in CloudDM's Integration > SSO settings.

What is Active Directory?​

Active Directory (AD) is Microsoft's directory service and identity provider. Organizations use it to manage access to Windows-based resources and centralize information about users, groups, systems, and applications. Windows Server provides Active Directory Domain Services (AD DS).

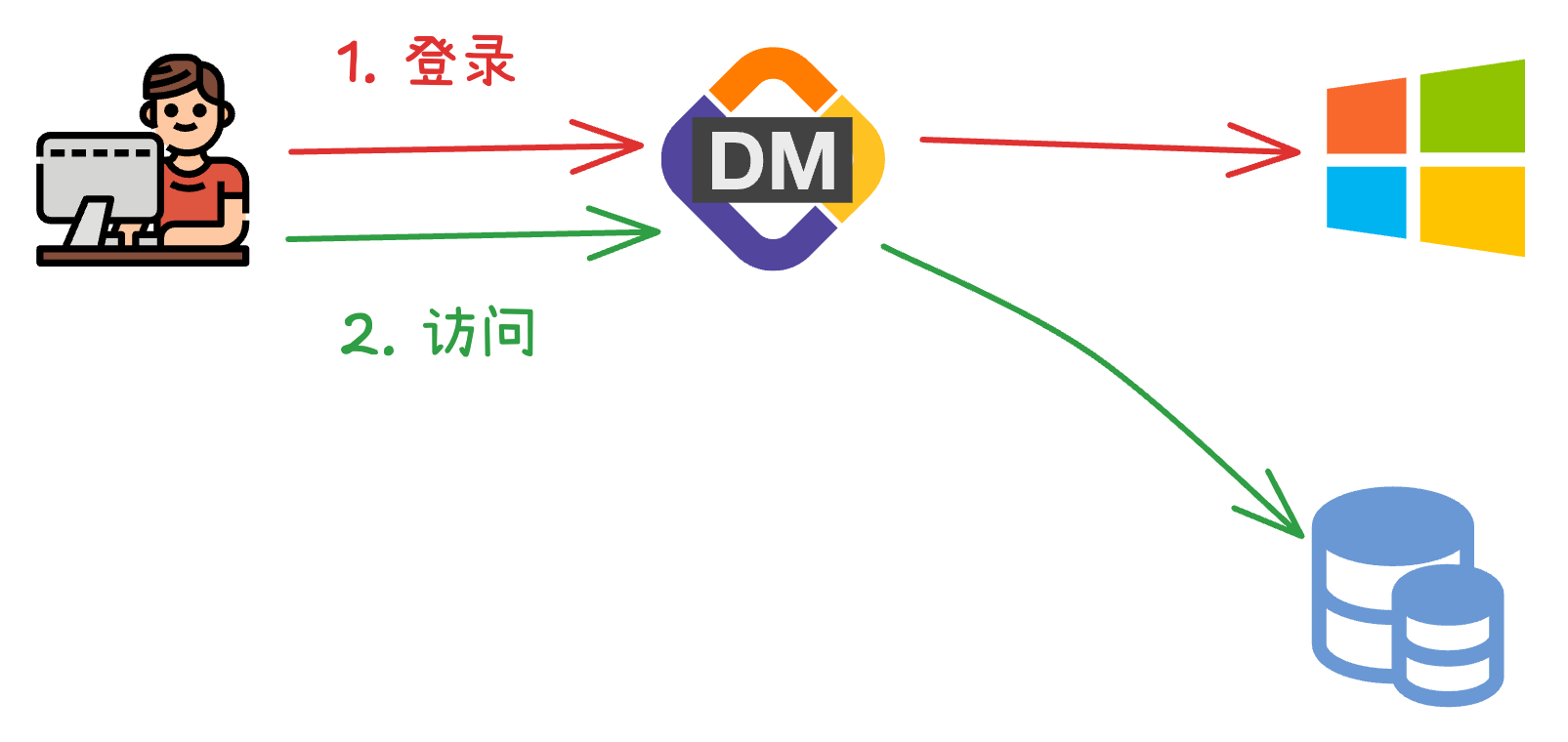

How it works​

  1. The user chooses the AD option on the CloudDM sign-in page and enters their domain credentials.
  2. CloudDM verifies the credentials with Active Directory Domain Services.
  3. At first sign-in, CloudDM reads directory attributes to populate the user's profile and assigns the provider's default role.

Domain sign-in names​

Active Directory commonly supports these sign-in name formats.

  • UPN uses user@domain.
  • Pre-Windows 2000 uses Domain\LogonName.

If CloudDM cannot resolve a NetBIOS name in the Pre-Windows 2000 format, ask your administrator to check the NetBIOS route setting.

Configure Active Directory​

  1. Sign in with an account that can manage integrations.
  2. Open Integration > SSO and click New.
  3. Select AD.
  4. Fill in the settings and click Add.
SettingRequiredDescription
LDAP hostYesHostname or IP address of the AD domain service.
LDAP portYesPort of the AD domain service.
Base DNYesBase distinguished name for user searches, such as dc=example,dc=com.
Bind userYesDomain account CloudDM uses to search Active Directory.
Bind passwordYesPassword of the bind user.
DomainYesActive Directory domain name.
NetBIOS routeNoName mapping for NetBIOS sign-in names.
Socket timeout (ms)NoConnection timeout. The form suggests 3000.
User objectClassNoUser object types. The form defaults to posixAccount,sambaSamAccount.
Login attributeYesDirectory attribute that supplies the sign-in name.
Username attributeNoDirectory attribute for the user's name. Default is sn.
Email attributeNoDirectory attribute for email. Default is mail.
Phone attributeNoDirectory attribute for the mobile number. Default is mobile.
Default roleYesRole assigned when an AD user first signs in to CloudDM.

Verify sign-in​

  1. Sign out and open the CloudDM sign-in page.
  2. Choose the AD option and use the UPN or NetBIOS format your organization supports.
  3. Confirm that the user can open CloudDM and that the profile and role match the configuration.
