OpenLDAP authentication

CloudDM verifies sign-in through the LDAP directory and handles DataSource access after authentication.

Configure your organization's LDAP directory as a dedicated provider in CloudDM's Integration > SSO settings.

What is LDAP?​

Lightweight Directory Access Protocol (LDAP) is an open standard for accessing and maintaining distributed directory information over IP networks. It lets users sign in to multiple internal services with the same directory credentials.

LDAP is based on a subset of the X.500 directory standard and is sometimes called X.500-lite. OpenLDAP is an open-source implementation.

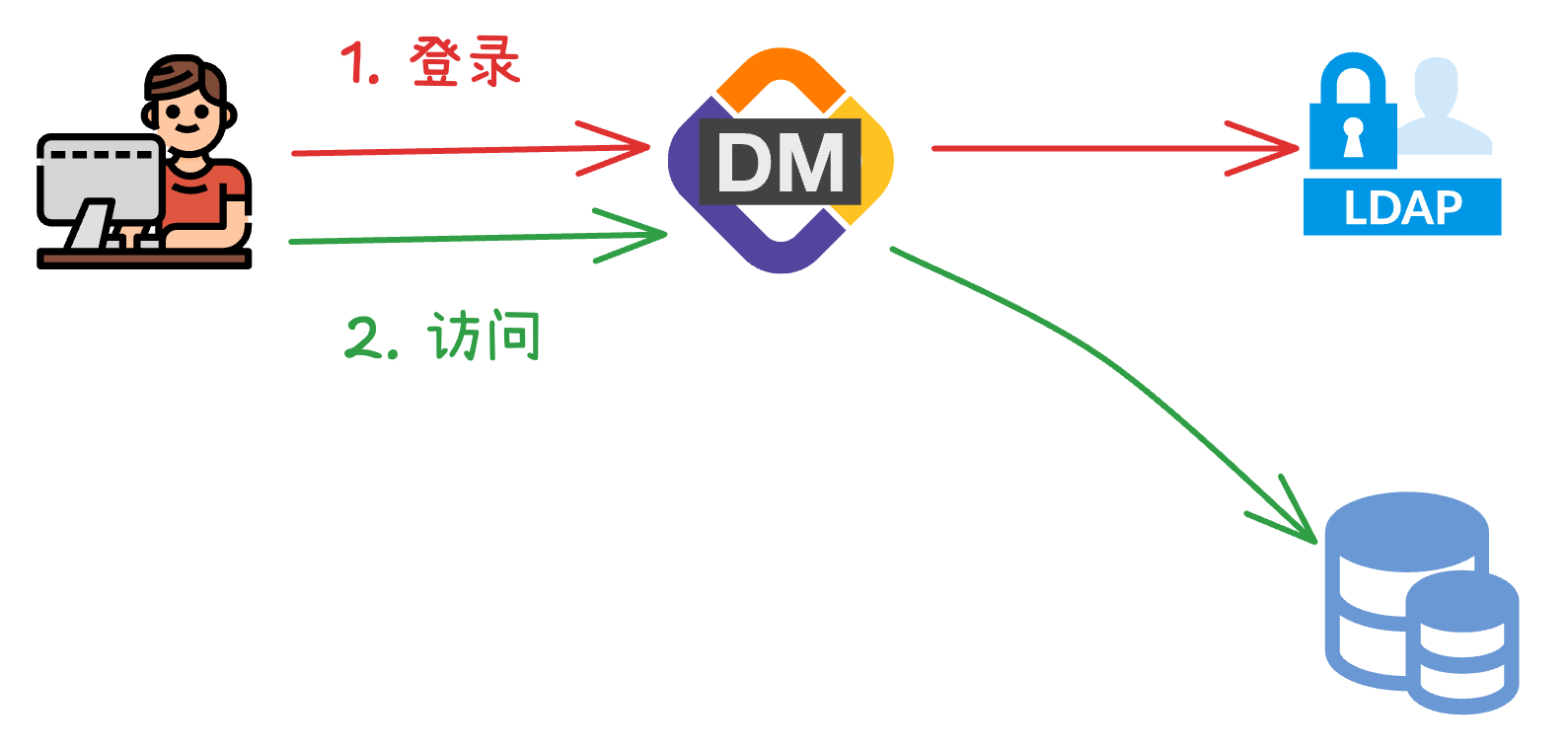

How it works​

  1. The user chooses the LDAP option on the CloudDM sign-in page and enters their directory credentials.
  2. CloudDM verifies the credentials with the LDAP server.
  3. At first sign-in, CloudDM reads directory attributes to populate the user's profile and assigns the provider's default role.

Configure OpenLDAP​

  1. Sign in with an account that can manage integrations.
  2. Open Integration > SSO and click New.
  3. Select LDAP.
  4. Fill in the settings and click Add.
SettingRequiredDescription
LDAP hostYesHostname or IP address of the LDAP server.
LDAP portYesPort of the LDAP server.
Base DNYesBase distinguished name for user searches, such as dc=example,dc=com.
Bind userYesDistinguished name of the account CloudDM uses to search the directory.
Bind passwordYesPassword of the bind user.
DomainNoSet this when users sign in with a domain name.
NetBIOS routeNoSet this to resolve NetBIOS sign-in names.
Socket timeout (ms)NoConnection timeout. The form suggests 3000.
User objectClassNoUser object types. The form defaults to posixAccount,sambaSamAccount.
Login attributeYesDirectory attribute that supplies the sign-in name.
Username attributeNoDirectory attribute for the user's name. Default is sn.
Email attributeNoDirectory attribute for email. Default is mail.
Phone attributeNoDirectory attribute for the mobile number. Default is mobile.
Default roleYesRole assigned when an LDAP user first signs in to CloudDM.

Verify sign-in​

  1. Sign out and open the CloudDM sign-in page.
  2. Choose the LDAP option and sign in with a directory account.
  3. Confirm that the user can open CloudDM and that their name, email, mobile number, and role match the configuration.
